Тема: How to connect fuel level sensor to Teltonika FMB920, FMB202, FMB204

•    Interface to be used:  Voltage output, connected to the analog input of Teltonika FMB120
•    How many sensors can be connected : 1


Wiring (using the Eurosens Dominator AF 3-wire cable for Eurosens Dominator sensors):

FMB900 wiring
fmb900 wiring


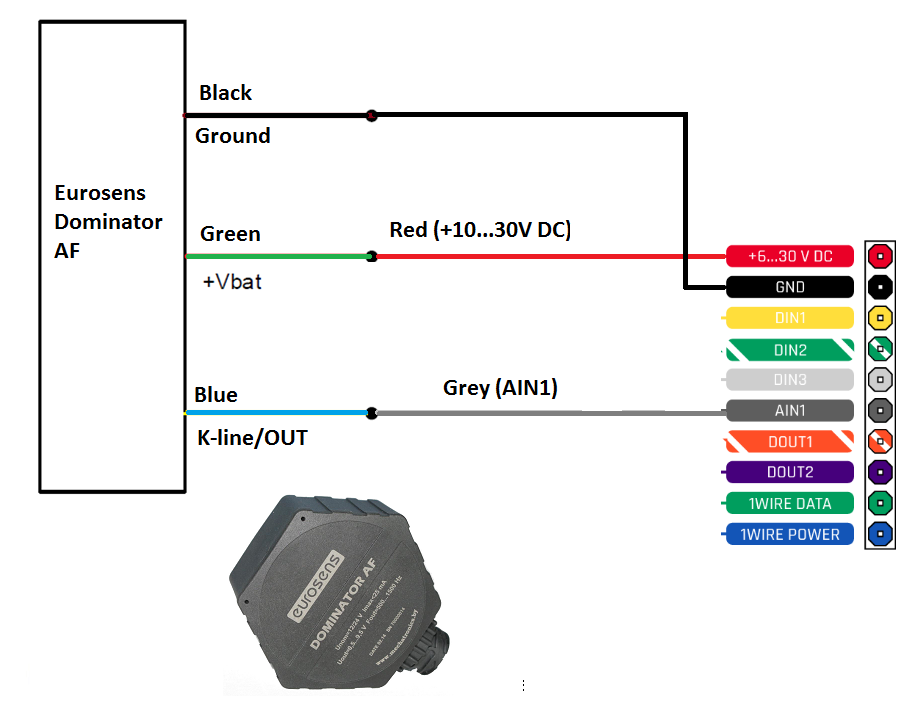

FMB202, FMB204 wiring:
fmb202 wiring

Подписывайтесь на наш новостной канал RU: https://t.me/mechatronicsby
Subscribe to our Telegram news channel EN: https://t.me/eurosens
Youtube channel https://www.youtube.com/@MechatronicsTV

Сайт Mechatronica

2 Ответ от Mechatronica

  • Зарегистрирован: 2015-01-21
  • Сообщений: 816

Re: How to connect fuel level sensor to Teltonika FMB920, FMB202, FMB204

Setting up the sensors :  switch the Analog  output ON (by default it is ON).

Choose analog output range.  For 24V onboard voltage choose 1.0-9.5V, for 12V onboard voltage choose 1-7V.

Fuel level sensorsettings  FMB900

Подписывайтесь на наш новостной канал RU: https://t.me/mechatronicsby
Subscribe to our Telegram news channel EN: https://t.me/eurosens
Youtube channel https://www.youtube.com/@MechatronicsTV

Сайт Mechatronica

3 Ответ от Mechatronica

  • Зарегистрирован: 2015-01-21
  • Сообщений: 816

Re: How to connect fuel level sensor to Teltonika FMB920, FMB202, FMB204

Setting up the GPS tracker:
1.    Connect sensor and check that analog input can detect the voltage coming from sensor.
2.    Set LOW priority and “Event only” option to “NO”

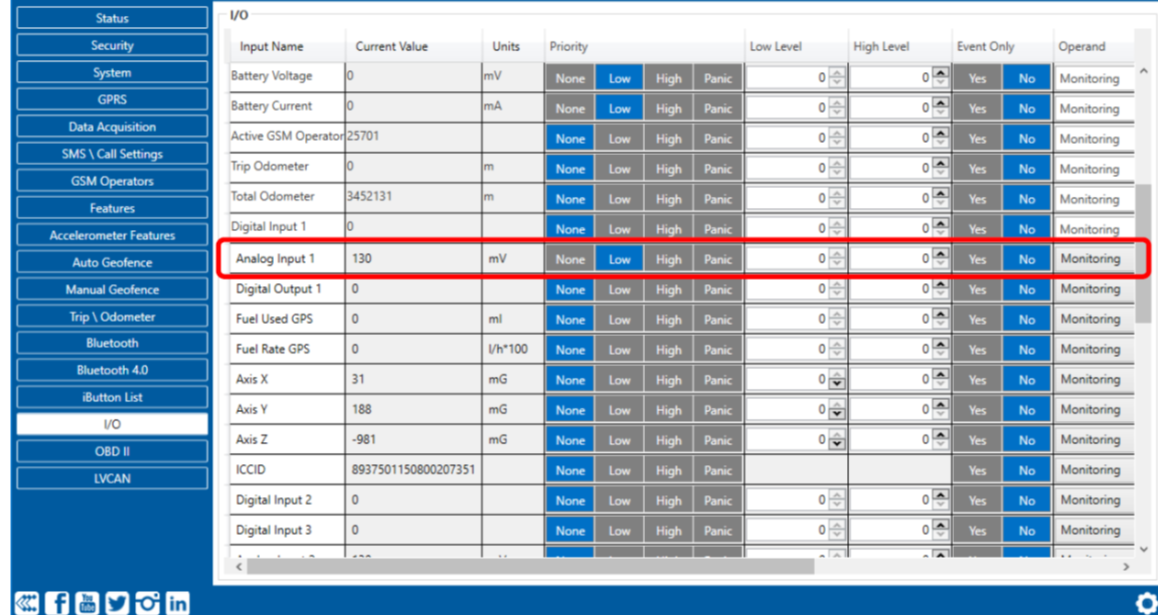

analog io FMB920 fuel sensor

3.    To smooth data increase averaging constant to 10.
FMB920 fuel level sensor smooth data

Подписывайтесь на наш новостной канал RU: https://t.me/mechatronicsby
Subscribe to our Telegram news channel EN: https://t.me/eurosens
Youtube channel https://www.youtube.com/@MechatronicsTV

Сайт Mechatronica

4 Ответ от Mechatronica (изменено: Mechatronica, 2019-04-27 21:35:41)

  • Зарегистрирован: 2015-01-21
  • Сообщений: 816

Re: How to connect fuel level sensor to Teltonika FMB920, FMB202, FMB204

Setting up the GPS tracking platform ( Wialon as an example)

Sensor №1 (AIN1) – message “io_9”, in millivolts

Calibrate tank according to Eurosens Dominator manual. Lets during tank calibration tank was filled from empty to full condition with 378 liters:
1.0 V (1000 millivolts)=0 liters
9.5V (9500 millivolts)=378 liters
Put these values in the sensor calibration table in Wialon (Generate from XY pairs) and click Generate. You may also limit min and max values in Lower and Upper bound fields.

Setting is complete.
